Switchgear

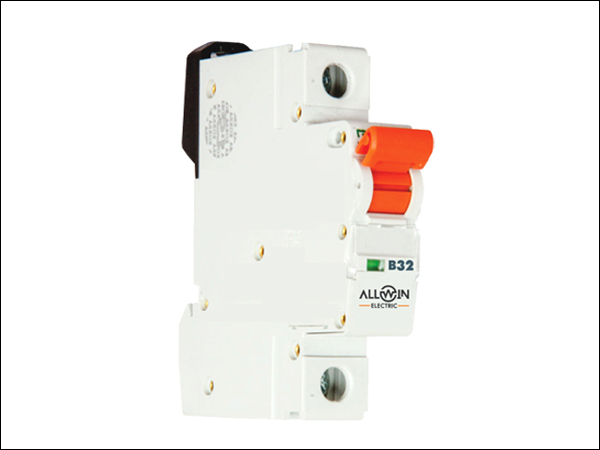

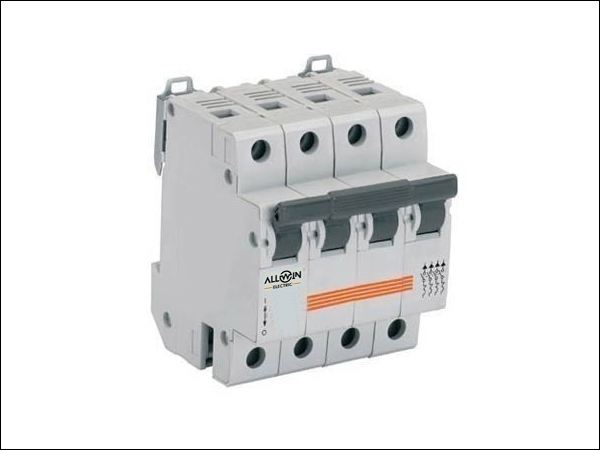

Miniature Circuit Breakers (MCB)
A circuit breaker is an automatically operated electricalswitch designed to protect an electrical circuit from damage caused by excess current, typically resulting from an overload or short circuit. Its basic function is to interrupt current flow after a fault is detected. Unlike a fuse, which operates once and then must be replaced, a circuit breaker can be reset to resume normal operation.

Construction and Features :

  • State of the art design
  • Contact position indicating window (Clear ON-OFF indicator)
  • Three level indications For ON, OFF & TRIP (Under Fault)
  • Rated short circuit capacity: 10000A (10kA)
  • Trip free mechanism
  • High speed and high breaking capacity mechanism
  • Terminal block with safety shutter: It prevents wrong wiring & burning of terminals
  • High speed wiping contact structure
  • Bi-connect terminals at both sides give a choice of using either a busbar or cable to make the connection.
  • Environment-Friendly, Meets the RoHS Compliance defined by the European Standards
  • Power loss values are much lower than the specified values of IS/IEC making it the most energy-efficient MCB

Reference Standard : IS/IEC 60898-1:2008
Poles : Single Pole (1P), Single Pole + Neutral (1P+N), Two Pole (2P), Three Pole (3P), Three Pole + Neutral (3P+N), Four Pole (4P)
Current Rating : 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
Capacity : 10kA
Types : B, C
MCB Changeover Switch : MCB Changeover Switch is a manually operated changeover switch which finds its application in switching load between two power supplies. The changeover switch comes in 2P and 4P versions, for single and three phase application respectively. It has three positions ( I-O-II ) with centre-off.
Reference Standard : IS/IEC 60947-3
No. of Poles : 2P, 4P
Current Rating : 25A, 40A, 63A, 100A
Modular Mini MCB : This compact and reliable range of Modular Mini MCB ensures operational safety of precious appliances by providing undeterred protection from overload and short circuit. Mini MCB is suitable for protection on per point basis.
Reference Standard : IS/IEC 60898-1:2002
No. of Poles : 1P, 2P
Current Rating : 6A, 10A, 16A, 20A, 25A, 32A
Capacity : 3kA
Type : B, C
Mounting : Modular Type, Screw Type
Mini MCB with enclosure : This is a compact & aesthetically designed protection device which provides protection against Overload & Short Circuit. Common applications are in Air Conditioners, Geysers, Motors, etc. It is designed for quick and easy installation.
Reference Standard : IS/IEC 60898-1
Current Rating : 6A, 10A, 16A, 20A, 25A, 32A
Capacity : 3kA
No. of Poles : 2P

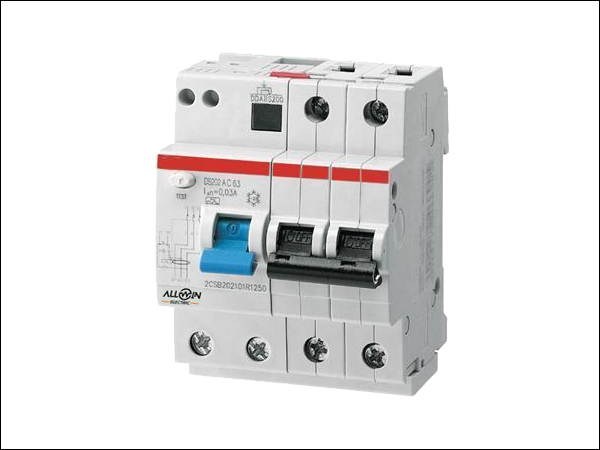

Residual Current Circuit Breaker (RCCB)
Allwin Electric Residual Current Circuit Breaker(RCCB), also known as Earth Leakage Circuit Breaker(ELCB), is designed to cause the opening of contacts to disconnect the load from the supply mains when the residual current is flowing in the circuit. Earth leakage and its associated hazards can be prevented by RCCB. Faulty wires, poorly insulated equipment & incorrect use of an electrical device are the primary elements that may cause leakage of current.

Reference Standard : IS 12640-1, IEC 61008-1
No. of Poles : 2P, 4P
Poles : Single Pole (1P), Single Pole + Neutral (1P+N), Two Pole (2P), Three Pole (3P), Three Pole + Neutral (3P+N), Four Pole (4P)
Current Rating : 16A, 20A, 25A, 32A, 40A, 63A




Isolator Switching Devices
Allwin Electric Isolators are perfect companions for ensuring the complete de-energization of the electrical circuits. The isolator ensures that there will be no current at the load side even if impulse voltage appears when the isolator is OFF.

Reference Standard : IS/IEC60947-3
No. of Poles : 2P, 4P
Current Rating : 6A, 10A, 16A, 20A, 25A, 32A, 40A, 63A, 100A
